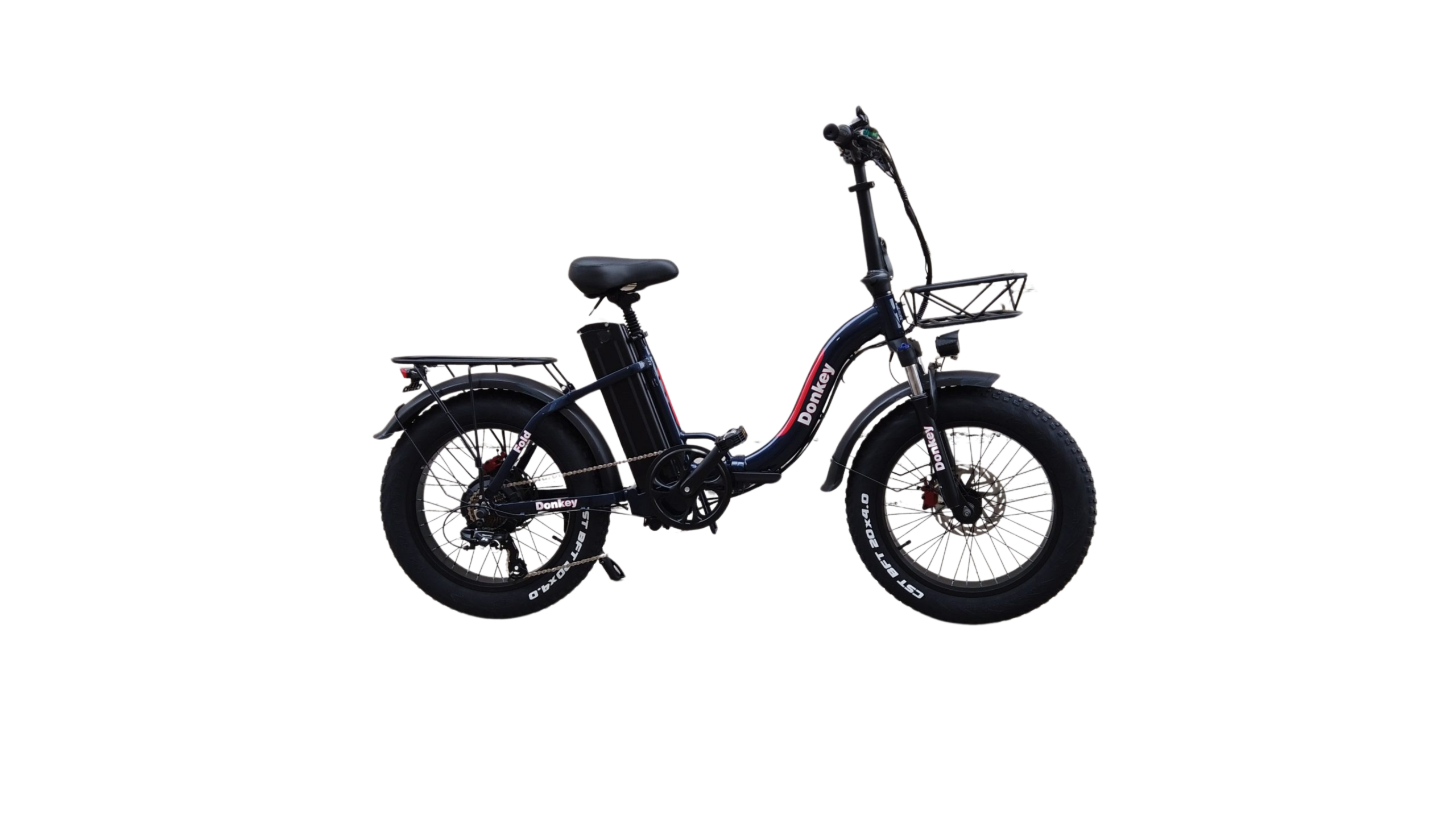

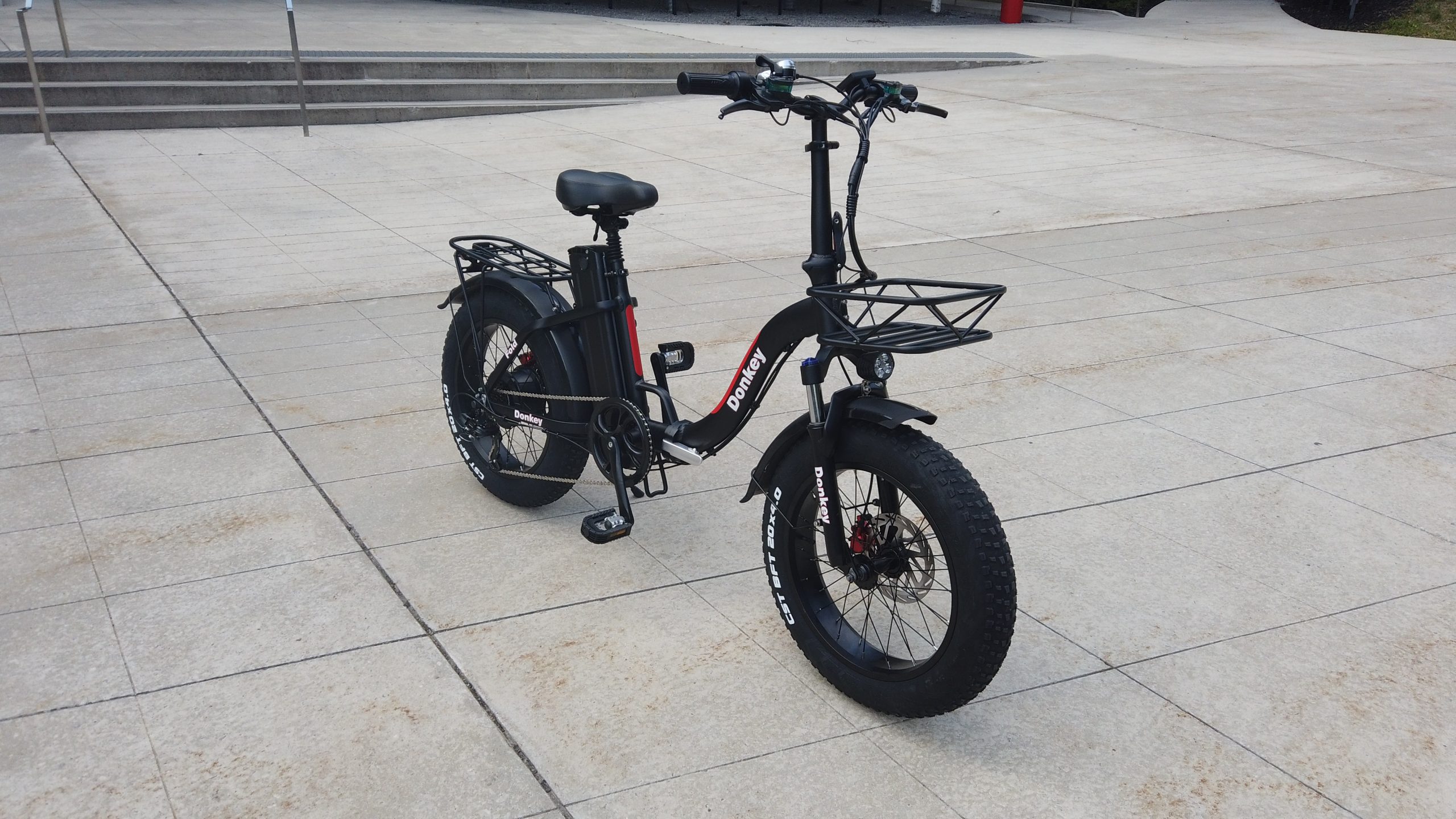

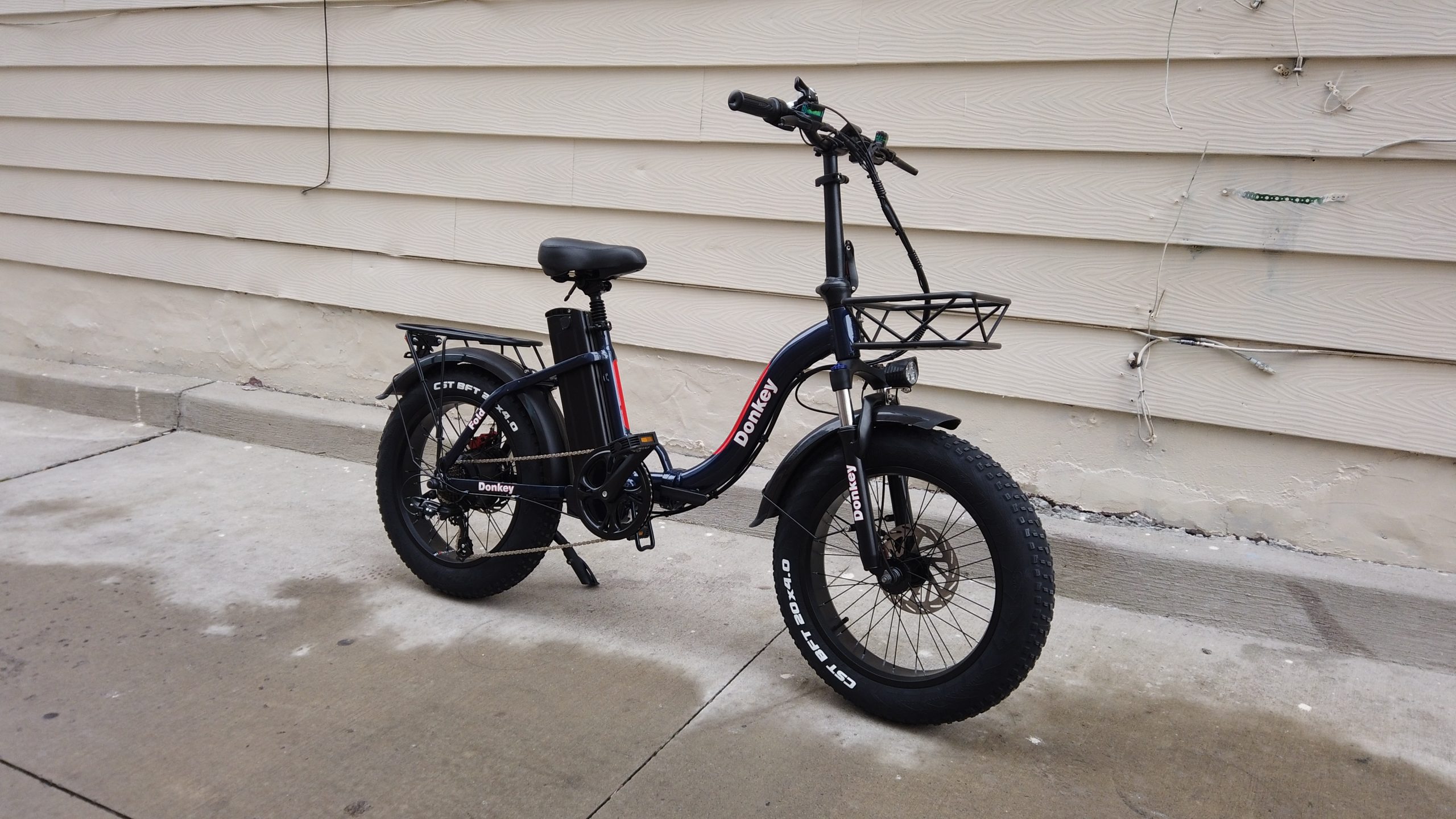

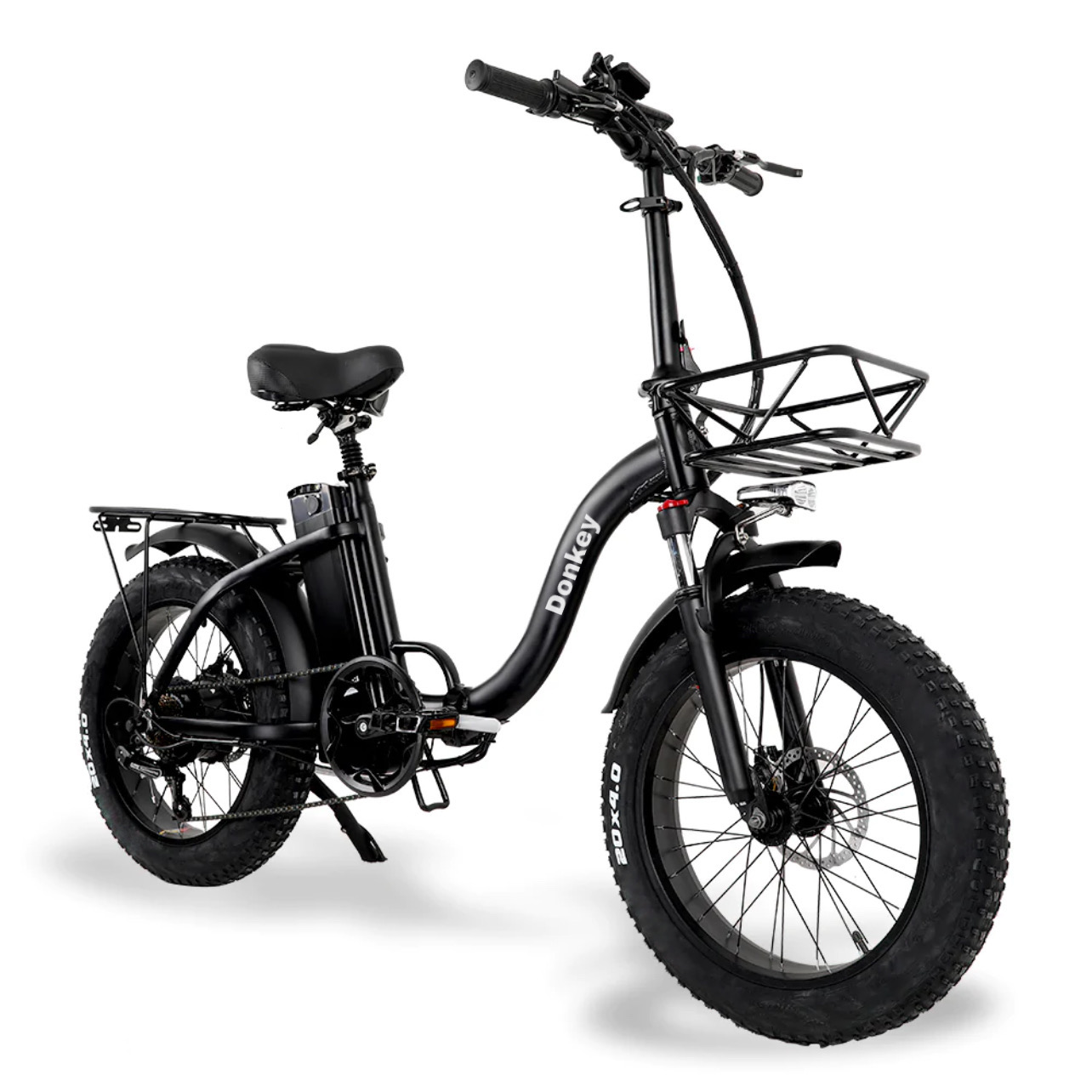

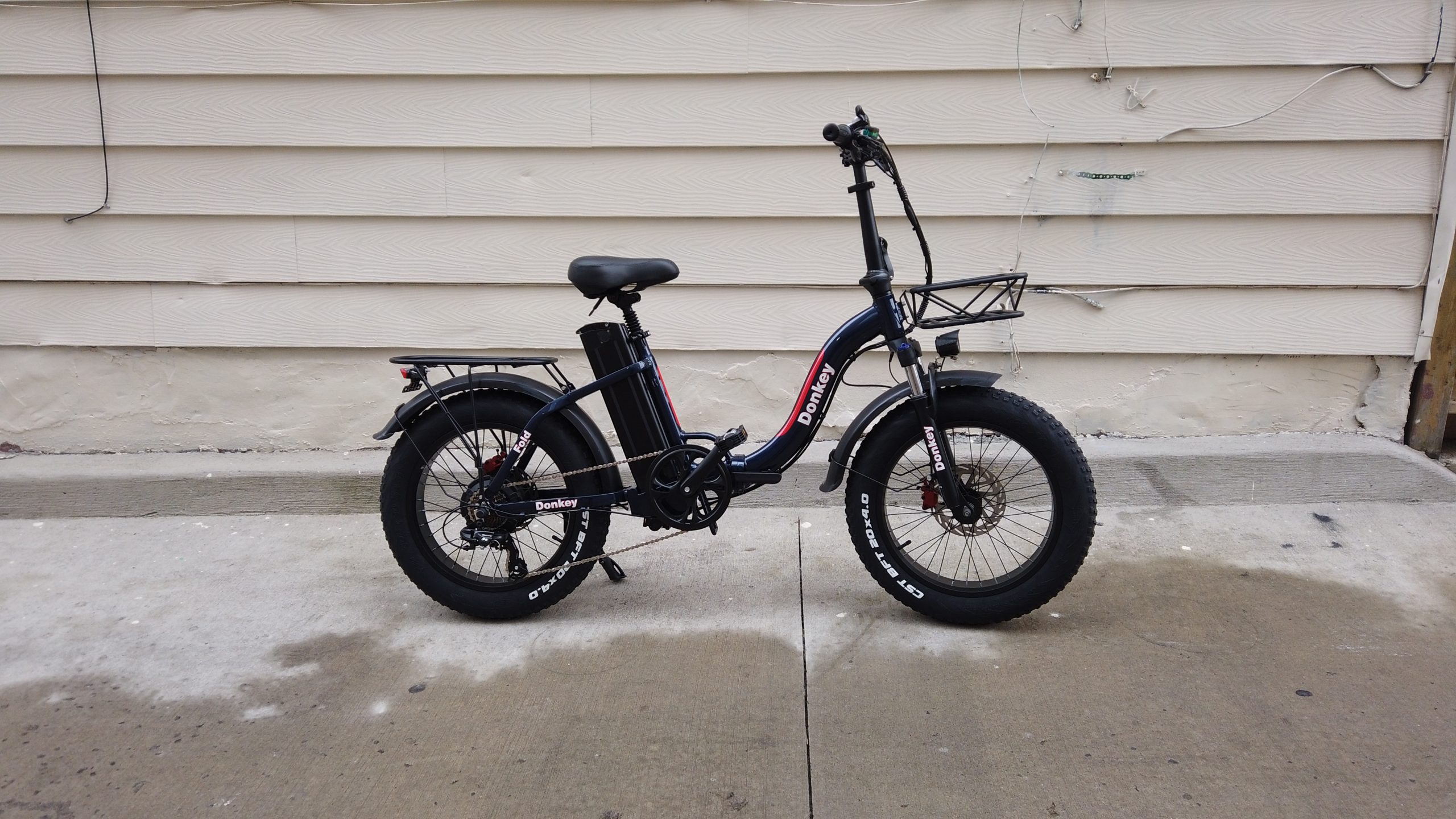

🐴 TankX Donkey “The Classic” – Specification Sheet

Classic Reliability Meets Modern Power

🔋 Battery & Power

• Voltage: 48V
• Motor Power: 500W (Peak) / 100W (Nominal)
• Battery Capacity: 20Ah Lithium-Ion
• Battery Position: Under-seat mount (primary)

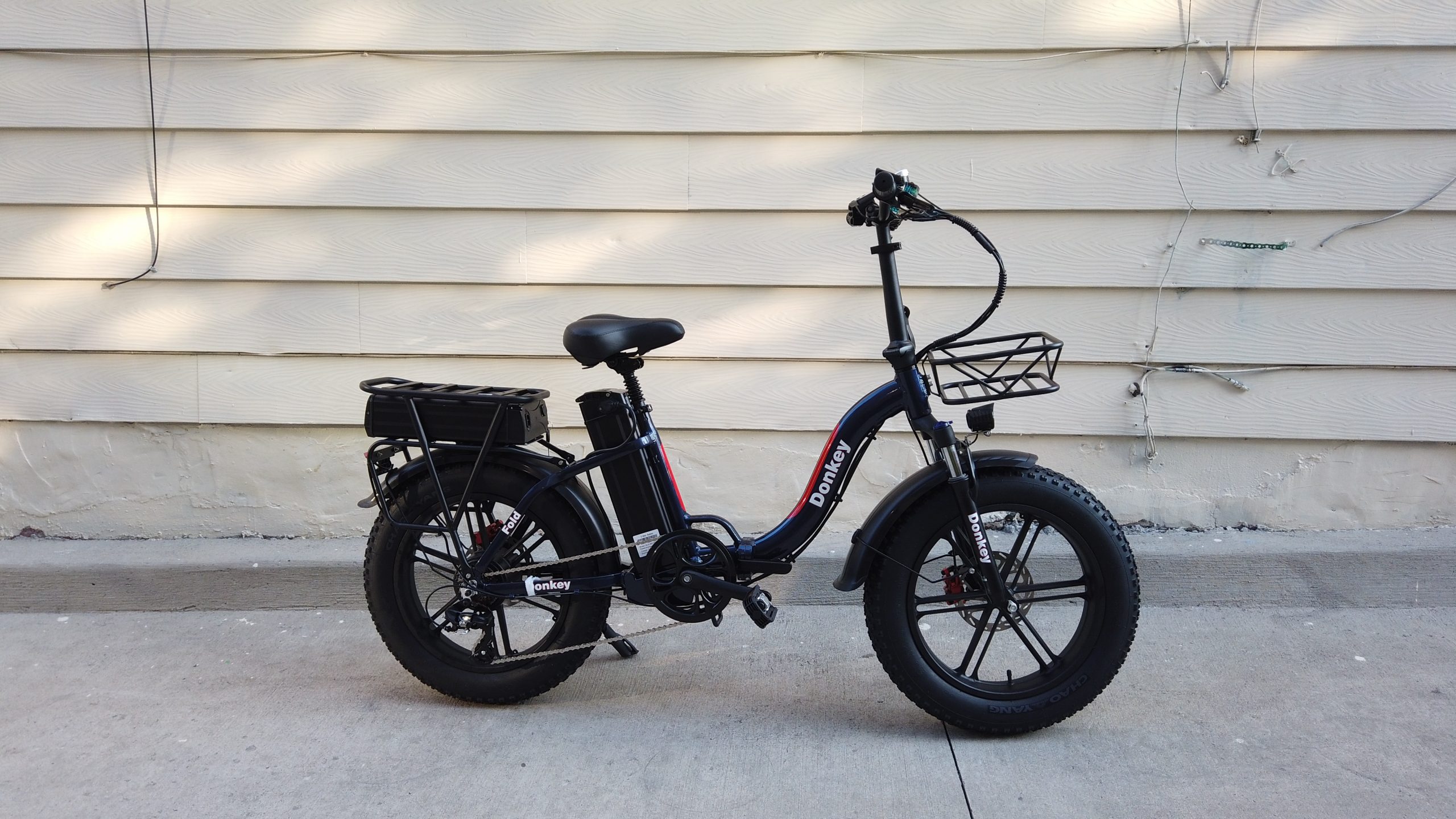

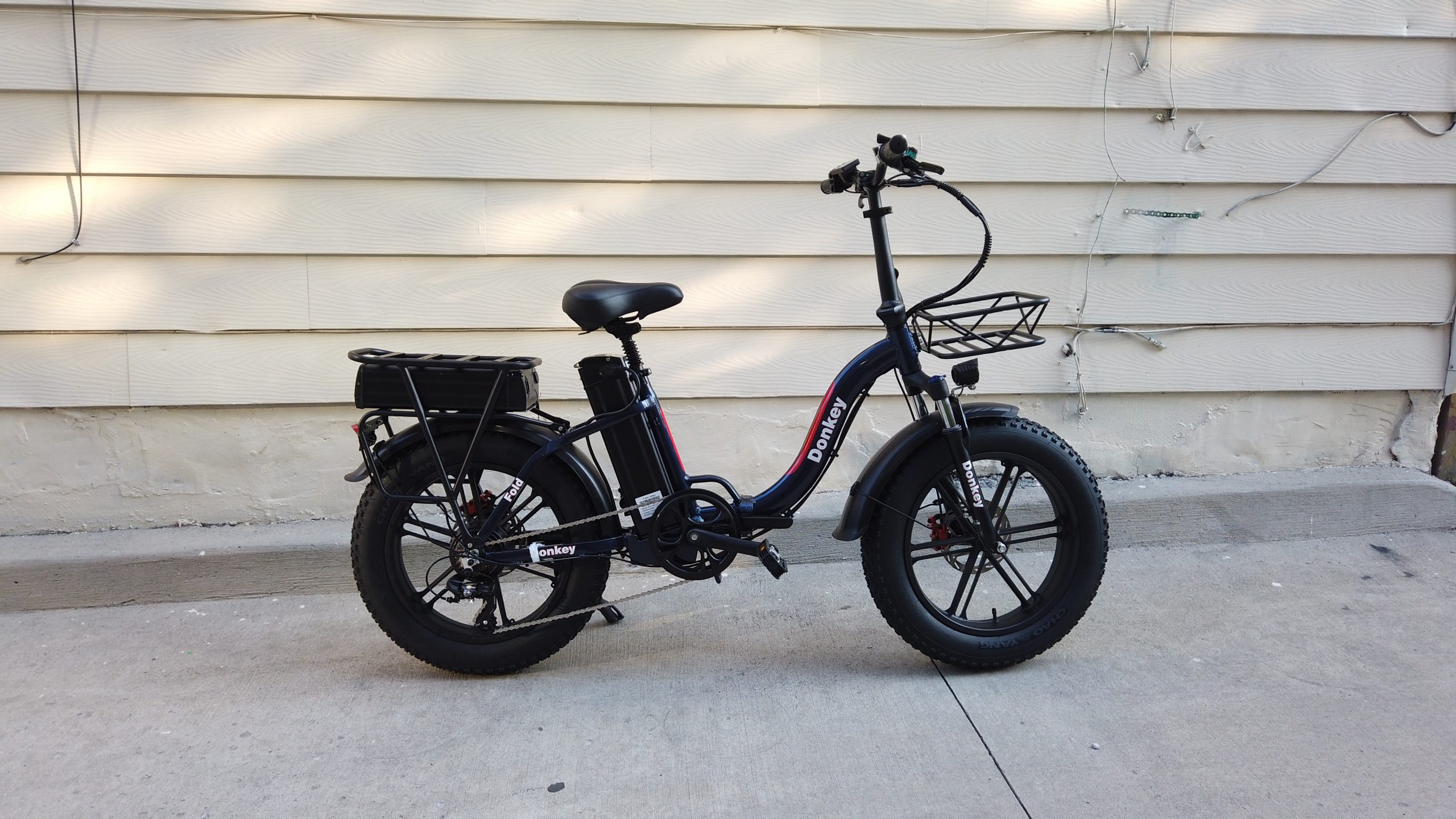

• Secondary Battery (Optional): Rear rack mount – +25Ah
• Total Range (1 Battery): 60–80 km*
• Total Range (2 Batteries): Up to 120 km+*
• Additional Battery Cost: CAD $400
• Charging Time: 6–8 hours (per battery)
• Throttle Type: Twist Grip
• Pedal Assist Levels: 5-speed PAS via LCD Display

⚙️ Performance

• Top Speed: 32–56 km/h (varies by load & terrain and odo)
• Modes: Throttle / Pedal Assist / Walk Mode
• Controller: Advanced multi-speed controller

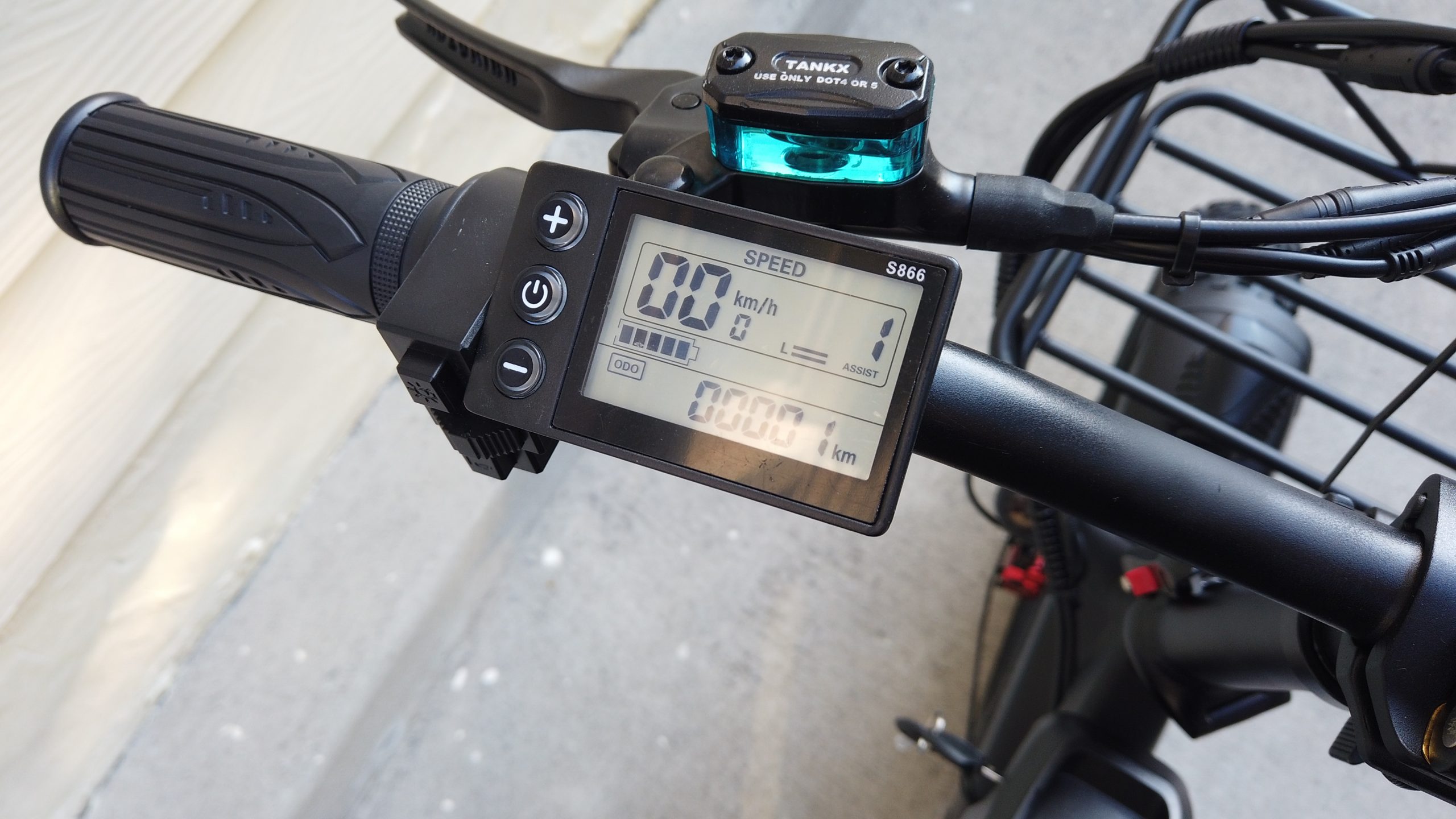

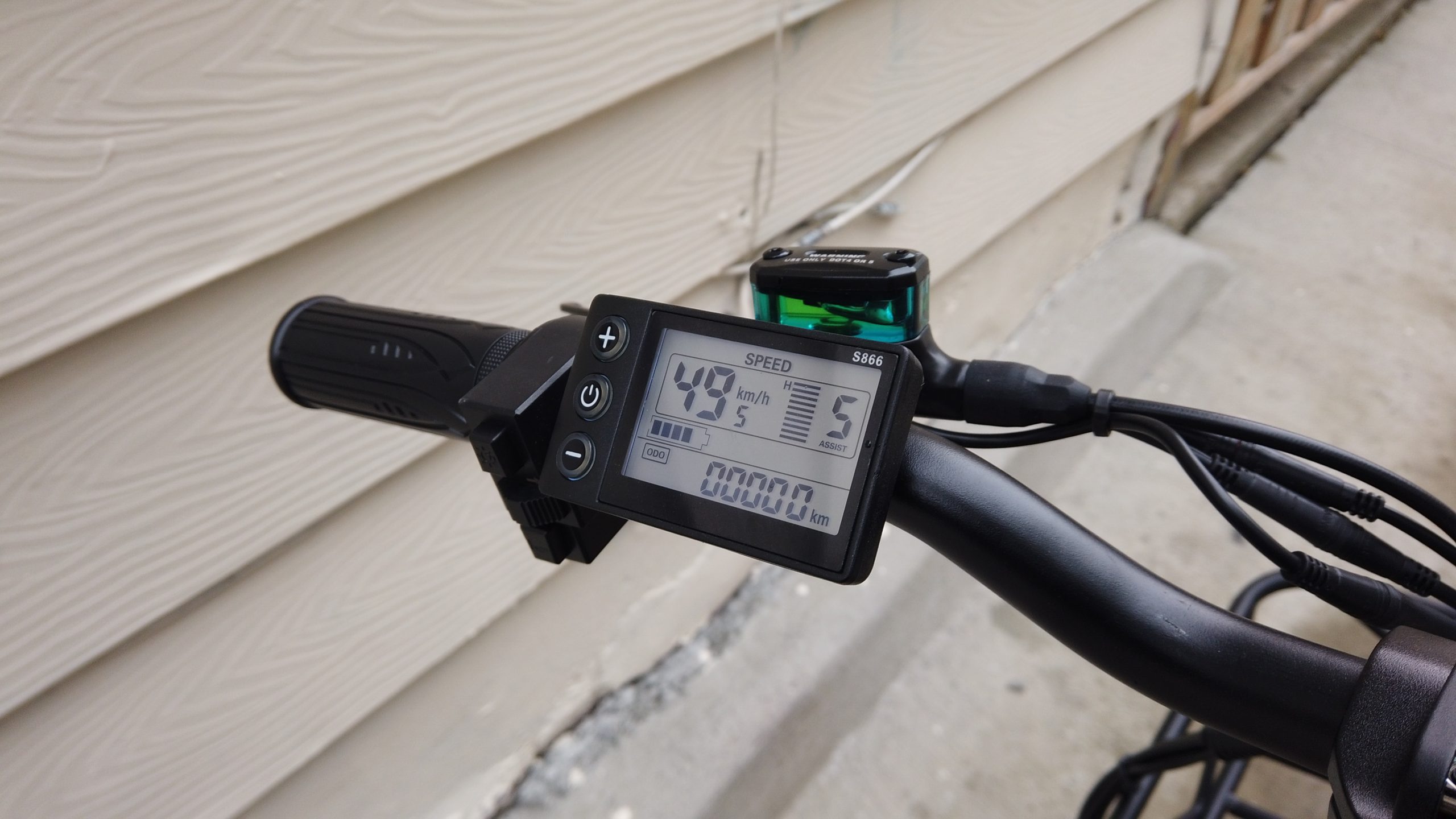

• Odometer & Display: LCD Smart Display – Speed, Battery, PAS Level, Trip, ODO

🛞 Wheels & Suspension

• Wheel Size: 20”X4”
• Tire Type: All-Terrain Fat Tires
• Suspension: Front Fork + Rear Shock Absorbers
• Riding Terrain: Pavement, Gravel, Dirt, Urban, Light Off-Road

🛑 Brakes & Safety

• Braking System: Hydraulic Disc Brakes (Front & Rear)
• Brake Pads: Thick, long-wear motorcycle-grade pads
• Regenerative Braking: No
• Lights: LED Headlight + Rear Brake Light
• Turn Signals: Rear turn signal indicators
• Horn: Built-in Electric Horn
• Reflectors: Front, Rear, and Wheel Reflectors

🧺 Cargo & Utility

• Rear Basket: Included
• Front Basket: Included
• Rear Rack: Yes – supports second battery or cargo
• Max Load Capacity: 150–160 kg (330–350 lbs)
• Use Case: Delivery, Commuting, Long-Distance, Utility

🪶 Frame & Build

• Frame Material: Lightweight Aluminum Alloy
• Design: Foldable, Step-Through
• Folding Mechanism: Central hinge with secure lock
• Folded Dimensions: Compact for car trunks, elevators, etc.
• Net Weight: ~32–35 kg (with 1 battery)
• Color Options: Varies (contact for current availability)

🌦️ Weather & Durability

• Water Resistance: IPX4 – light rain and splash safe
• Season Use: All-Season Commuter & Delivery-Ready
• Proven Mileage: Over +26,000 km ridden by real-world users
• Build Strength: Designed to withstand daily, high-mileage use

📦 What’s Included

• TankX Donkey eBike
• 48V 20Ah lithium ion Battery
• Charger
• Front + Rear Baskets
• LCD Display with 5-Speed Assist
• Horn, Lights, Turn Signals
• Folding Tool Kit & Manual

💡 Optional Add-Ons

• 🔋 Extra 20Ah Battery (for rear mount): +CAD $400
• 📱 Phone Mount & USB Charger
• 🔒 Security Lock Kit

💥 TankX Donkey – Ride Farther. Carry More. Designed to Last. Built to Beat 💥
